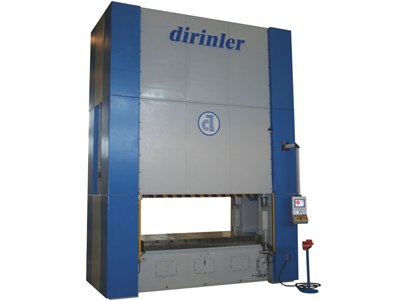

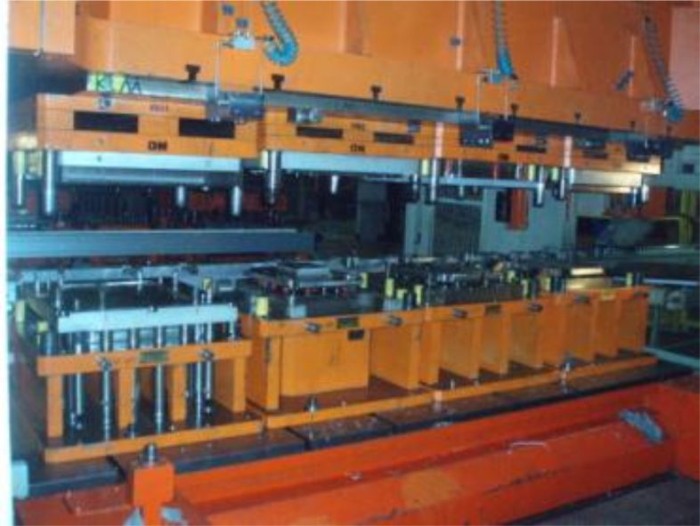

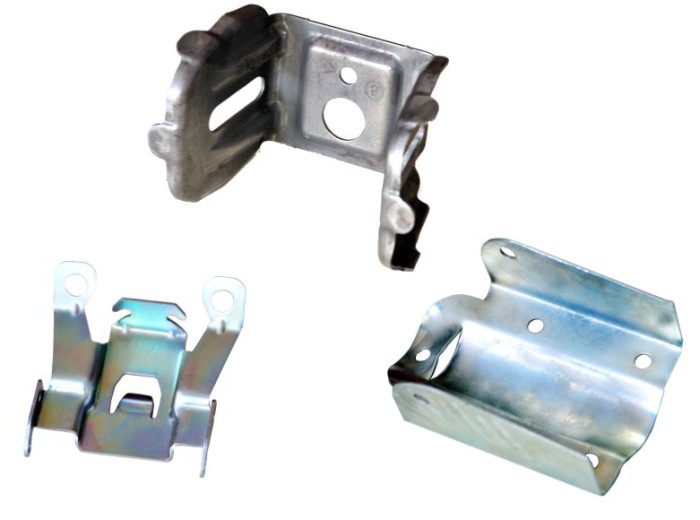

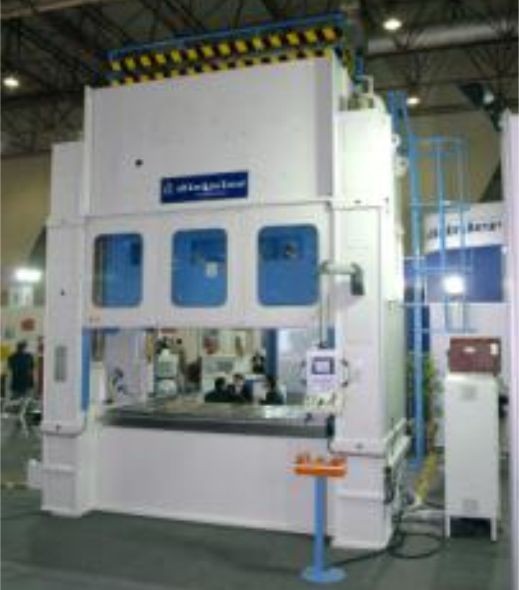

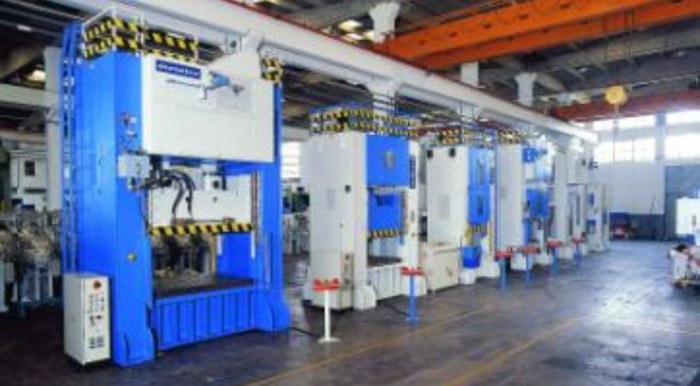

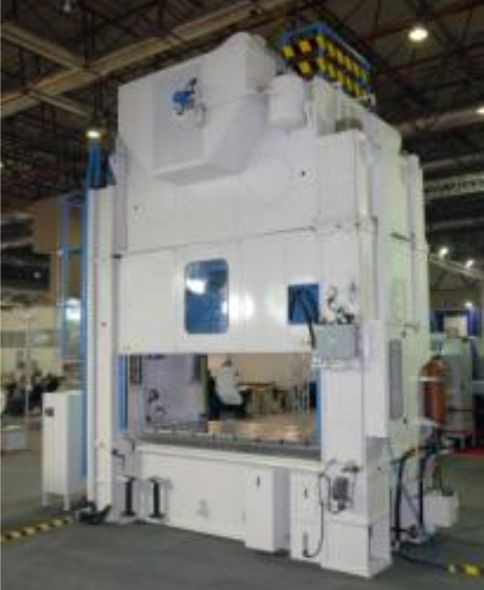

CDCH P 2B Series

TYPE
TECHNICAL DATA CDCH 1600
P 2B
CDCH 2000
P 2B
CDCH 3000 P 2B CDCH 4000 P 2B CDCH 5000
P 2B
CDCH 6300
P 2B
Capacity tons 120 200 300 300 400 400 500 630
Rated tonnage height mm 5 4 6 8 7 10 5 7
Max. closed die set height mm 500 600 500 640 660 650 700 850
Stroke distance mm 120 60 180 160 200 300 350 350
Press speed spm 50-80 35-70 26 25-40 20-30 30-40 20-30 20-35
Motorized ram adjustment mm 50(motorized) 100(motorized) 140(motorized) 140(motorized) 140(motorized) 200(motorized) 200(motorized) 200
Table dimension mm 1400x600 1600x1000 1800x1200 2000x1200 2200x1200 2500x1600 2800x1500 3000x1500

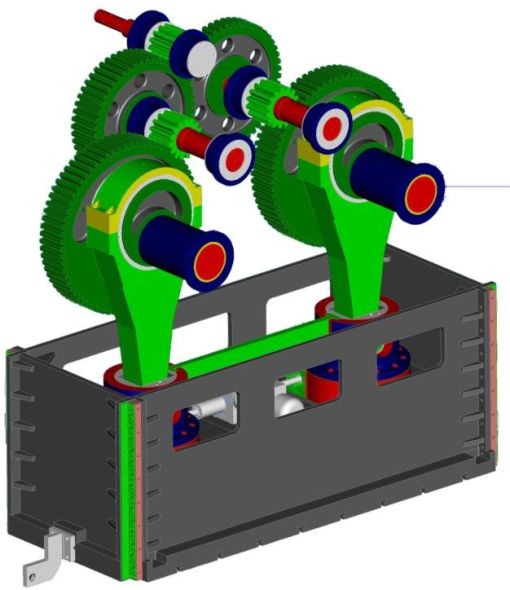

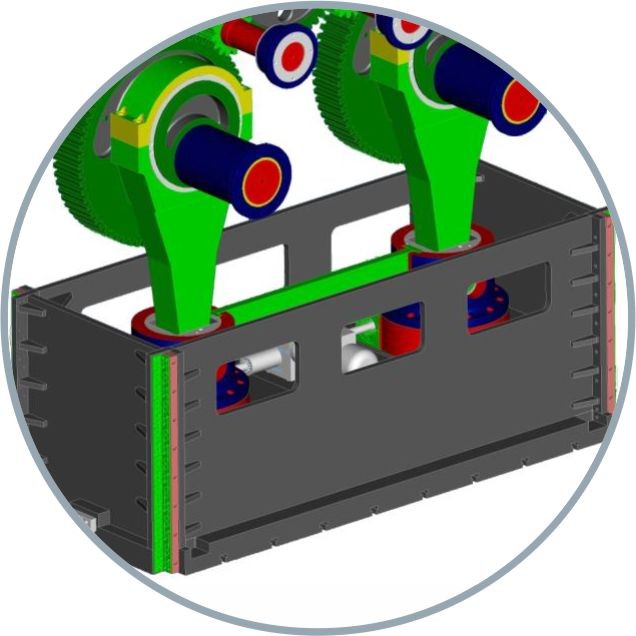

Number of connecting rod piece 2 2 2 2 2 2 2 2
Table height from the ground mm 840 1000 965 965 900 800 975 980
Estimated press weight kg 15000 20000 48000 48000 51000 67000 71000 85000
Estimated press height mm 4650 5144 5240 5260 5850 6150 6370 6780
Estimated press depth mm 1700 2100 2600 2550 2170 2400 2930 2880
Estimated press width mm 3530 3900 4400 4290 5100 5050 5280 5780
Motor power kw 15 22 45 45 55 75 37 55
* Our right to change the sizes and models is preserved.
Type
TECHNICAL DATA CDCH 1200
2PB
CDCH 2000
P 2B
CDCH 3000 P 2B CDCH 4000 P 2B
CDCH 5000 P 2B

CDCH 6300 P 2B
Stroke system Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed
Overload safety system Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Centralized lubrication system Re-cyded liquid Re-cyded liquid Re-cyded liquid Re-cyded liquid Re-cyded liquid Re-cyded liquid Re-cyded liquid Re-cyded liquid
Clutch brake system Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Safety guard system Photo-cell Photo-cell Photo-cell Photo-cell Photo-cell Photo-cell Photo-cell Photo-cell
Vibration pads Standard Standard Standard Standard Standard Standard Standard Standard
Speed control unit Standard Standard Standard Standard Standard Standard Standard Standard
Additional plate Optional Optional Optional Optional Optional Optional Optional Optional
