CDCH P Serisi

TYPE

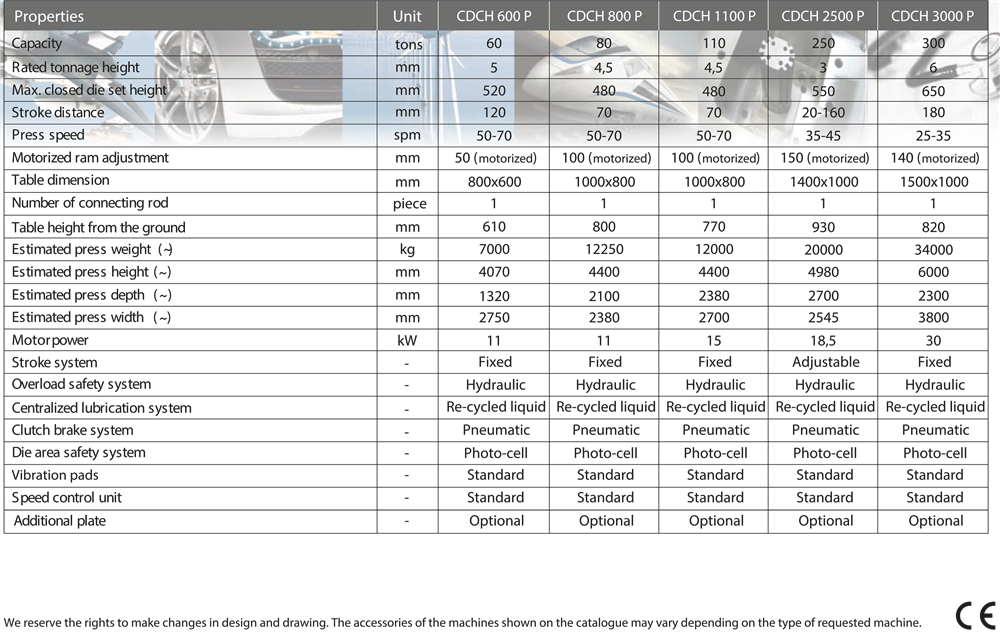

TECHNICAL DATA CDCH 600 P CDCH 800 P CDCH 1100 P CDCH 2500 P CDCH 3000 P
Capacity ton 60 80 110 250 300
Rated tonnage height mm 5 4,5 4,5 3 6
Max. closed die set height mm 520 480 480 550 650
Stroke distance mm 120 70 70 20-160 180
Press speed spm 50-70 50-70 50-70 35-45 25-35
Motorized ram adjustment mm 50(motorized) 100(motorized) 100(motorized) 150(motorized) 140(motorized)
Table dimension mm 800X600 1000X800 1000X800 1400X1000 1500X1000
Number of connecting rod adet 1 1 1 1 1
Table height from the ground mm 610 800 770 930 820
Estimated press weight kg 7000 12250 12000 20000 34000
Estimated press height mm 4070 4400 4400 4980 6000
Estimated press depth mm 1320 2100 2380 2700 2300
Estimated press width mm 2750 2380 2700 2545 3800
Motor power kw 11 11 15 18,5 30
* Our right to change the sizes and models is reserved.

TİP
DONANIM ÖZELLİKLERİ CDCH 600 P CDCH 800 P CDCH 1100 CDCH 2500 P CDCH 3000 P
Stroke system Fixed Fixed Fixed Adjustable Fixed
Overload safety system Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Centralized lubrication system Re-cycled liquid Re-cycled liquid Re-cycled liquid Re-cycled liquid Re-cycled liquid
Clutch brake system Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Die area safety system Photo-cell Photo-cell Photo-cell Photo-cell Photo-cell
Vibration pads Standard Standard Standard Standard Standard
Speed control unit Standard Standard Standard Standard Standar
Additional plate Optional Optional Optional Optional Optional
* Our right to change the sizes and models is reserved.
